Leaf Automation Studio

Type what you need. Studio builds the CAD tool.

Describe a drafting chore the way you'd explain it to a coworker. Studio writes the tool, runs it on Leaf or in your own AutoCAD, and changes it when you ask again.

Studio is in early access. Branch, our first tool, is live today.

Leaf Automation Studio
Model
Layout 1
Layout 2
STUDIO · TOOL BUILDILLUSTRATION

How Studio works

  1. 01

    Describe it

    Type the task in plain words: what goes in, what the drawing should look like when it's done.

  2. 02

    Studio writes the tool

    It authors a CAD tool against your drawing, on a signed kernel that keeps it from wrecking the file.

  3. 03

    Run it where you work

    Run it on Leaf in the browser or in your own AutoCAD, then reshape it by asking for the change.

See Studio build a tool in AutoCAD

The demo is almost done. Get on the early access list and we'll send it to you first.

Get early access

In the demo

  1. Branch strings the roof in AutoCADBranch groups a 660-module roof, balances it into 44 strings and checks every string length.
  2. Publish over the CAD bridgeOne click sends the strung drawing from AutoCAD to Studio as a new version.
  3. Open it in the browserStudio opens that version with the strings intact, ready to pan, zoom and inspect.
  4. Mark it up in StudioDraw a 25 ft keep-out around a roof penetration on its own layer.
  5. Save a versionStudio saves the edit as version 3 with its history kept.
  6. Pull it back into AutoCADPull lands the keep-out in AutoCAD next to the strung array.

Not filmed yet

  • Coming next

    Type a request, get a tool

    Describe a drafting chore and Studio writes the tool that does it.

  • Coming next

    See AutoCAD changes without a reload

    Studio picks up a version published from AutoCAD on its own.

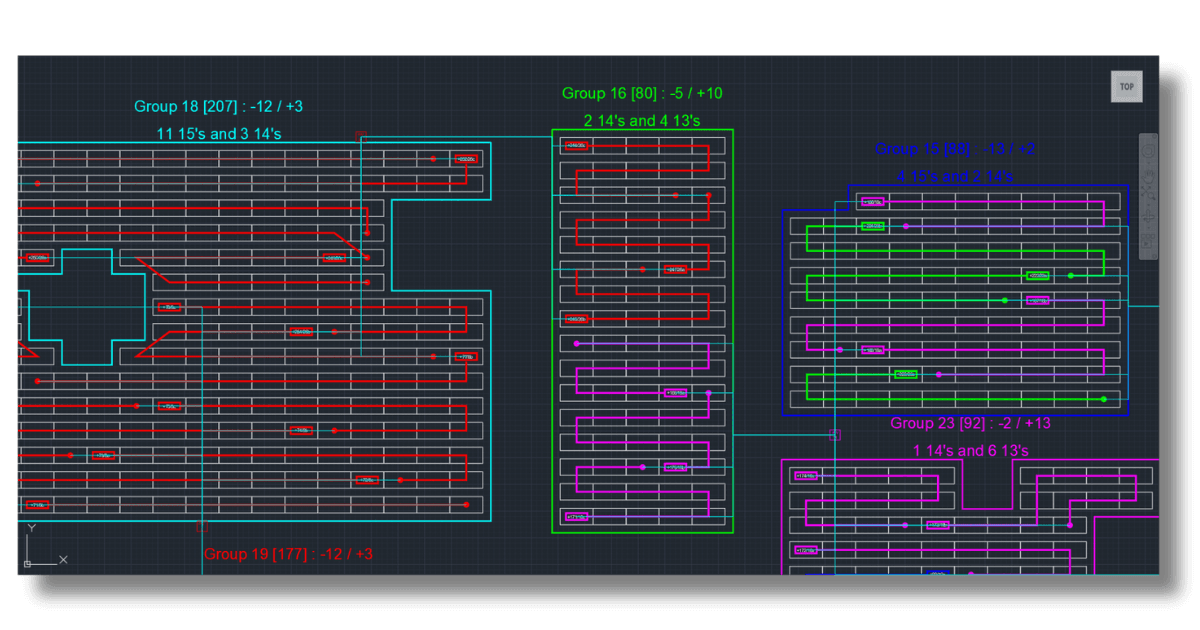

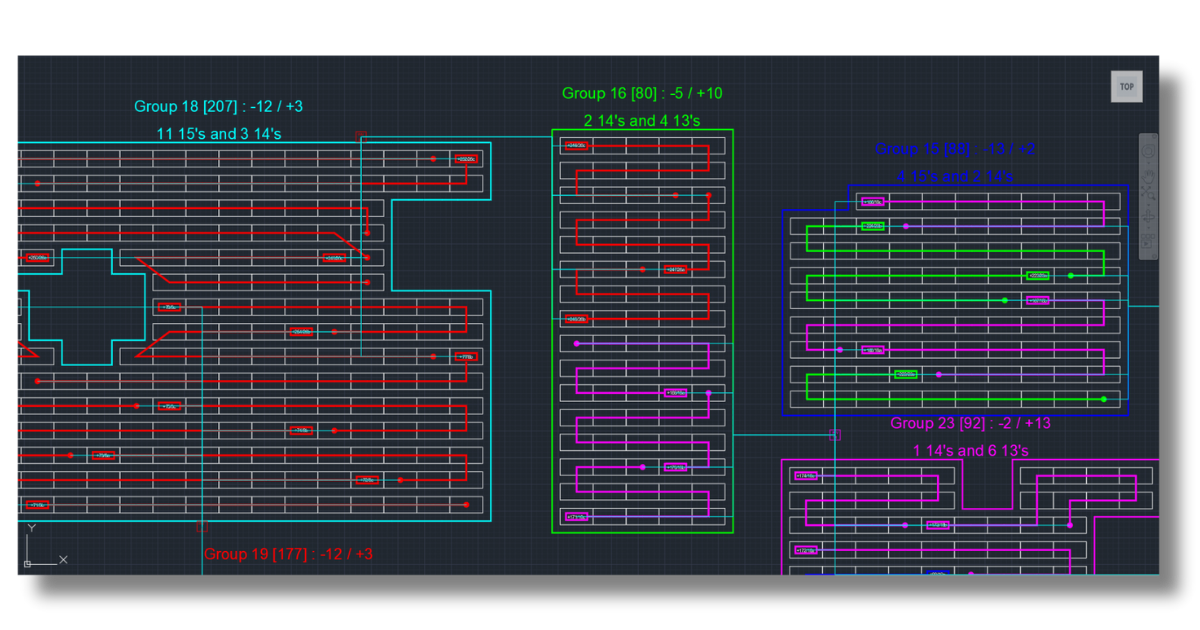

Branch: the first tool, already in production

Branch automates solar stringing in AutoCAD, the tool that started Leaf Automation. It's what Studio builds toward for every other drafting chore.

$299 / mo per daily active user · 14-day trial

The problem

Three decades of manual drafting, dressed up as engineering.

You still route conduit by hand. Still count panels onto strings. Still spend days on work a computer should handle — while labor shortages tighten, code gets denser, and deadlines don’t move.

It’s not engineering. It’s drafting.

Fig 01

25 hrs

Manual stringing per 1 MW commercial project: drawing lines, counting modules, pulling cable lengths.

NREL Solar Labor Study

Fig 02

40%

Of projects require rework. A panel layout shift means re-doing everything downstream of it.

Internal EPC survey, n=18

Fig 03

15 / 15

Engineering firms refused to share building plans to train generic AI. Proprietary IP isn't training data.

Leaf Automation research

How Branch works

Four steps. Three minutes. Inside your AutoCAD.

Step 01 · Import

Bring in the layout

Drop a SolarEdge Designer PDF, import from Helioscope, or use your own CAD panel grid. Branch reads specs, orientations, and setbacks automatically.

~30 sec · all sources

Step 02 · Configure

Set the engineering

Inverter model, MPPT count, voltage window, temp range. You make the decisions; Branch records them. No calculations on your behalf.

~60 sec · once per project family

Step 03 · Generate

Run the solver

Strings, homeruns, tags, cable lengths, placed on the drawing in your standard layers and block conventions. NEC voltage-window compliance by construction.

~2 min · 3.2 MW rooftop

Step 04 · Export

Hand off the CDs

Circuit length CSV for the BOM, tagged DWG for the stamped set, PDF for the AHJ. Rerun on any layout change. The whole cycle is disposable.

~15 sec · reruns just as fast

What Branch does

Six things, end to end.

Cap · 01

Strings

Place string lines with voltage-window compliance baked in. Module-level specs, temp-adjusted Voc, exact module counts.

NEC 690.7 · enforced at placement

Cap · 02

Homerun routing

K-means optimized paths from strings to combiners. Avoids obstructions, respects setback polylines, minimizes total run.

Mean run length ↓ 12% vs manual

Cap · 03

Circuit lengths

Per-string and total cable lengths to CSV. Feeds voltage-drop and bill-of-materials work downstream. Always from the drawn path.

CSV · per-string · per-combiner

Cap · 04

Tags & labels

String IDs, combiner labels, MPPT groupings placed on your standard layers. Block conventions match your template.

Configurable per firm template

Cap · 05

SolarEdge import

Drop a Designer PDF: panel layout, inverter, specs. The one feature our users say changed their workflow the most.

Designer PDF · CAD-ready in seconds

Cap · 06

Rerun, disposably

Layout changes are cheap. Delete, rerun, done. Rework isn't a deadline event anymore. It's a keystroke.

~15 seconds · full regenerate

The plan

Solar is the first system. Not the only.

Branch is a proof point, not the portfolio. The underlying ML generalizes to any spatially-constrained routing problem. One system at a time — prove it, ship it, expand.

Shipped · 2024

Solar stringing

2D routing in AutoCAD. Branch. Commercial + industrial rooftops, carports, ground mounts.

In development

Electrical conduit

3D routing in AutoCAD MEP and Revit. Data centers first. Same framework, new rule set.

Next

Plumbing & HVAC

MEP coordination across disciplines in commercial buildings. Multi-agent routing.

Research

Structural & site

Rebar, post-tensioning, underground utilities. Long-horizon. Same ML, deeper domain.

Studio early access

Your next CAD tool starts as a sentence.

Tell us what you'd build first. We'll reach out as seats open.

We use your email only for Studio early access.

Need something today? Branch, our first tool, is live. Try Branch
